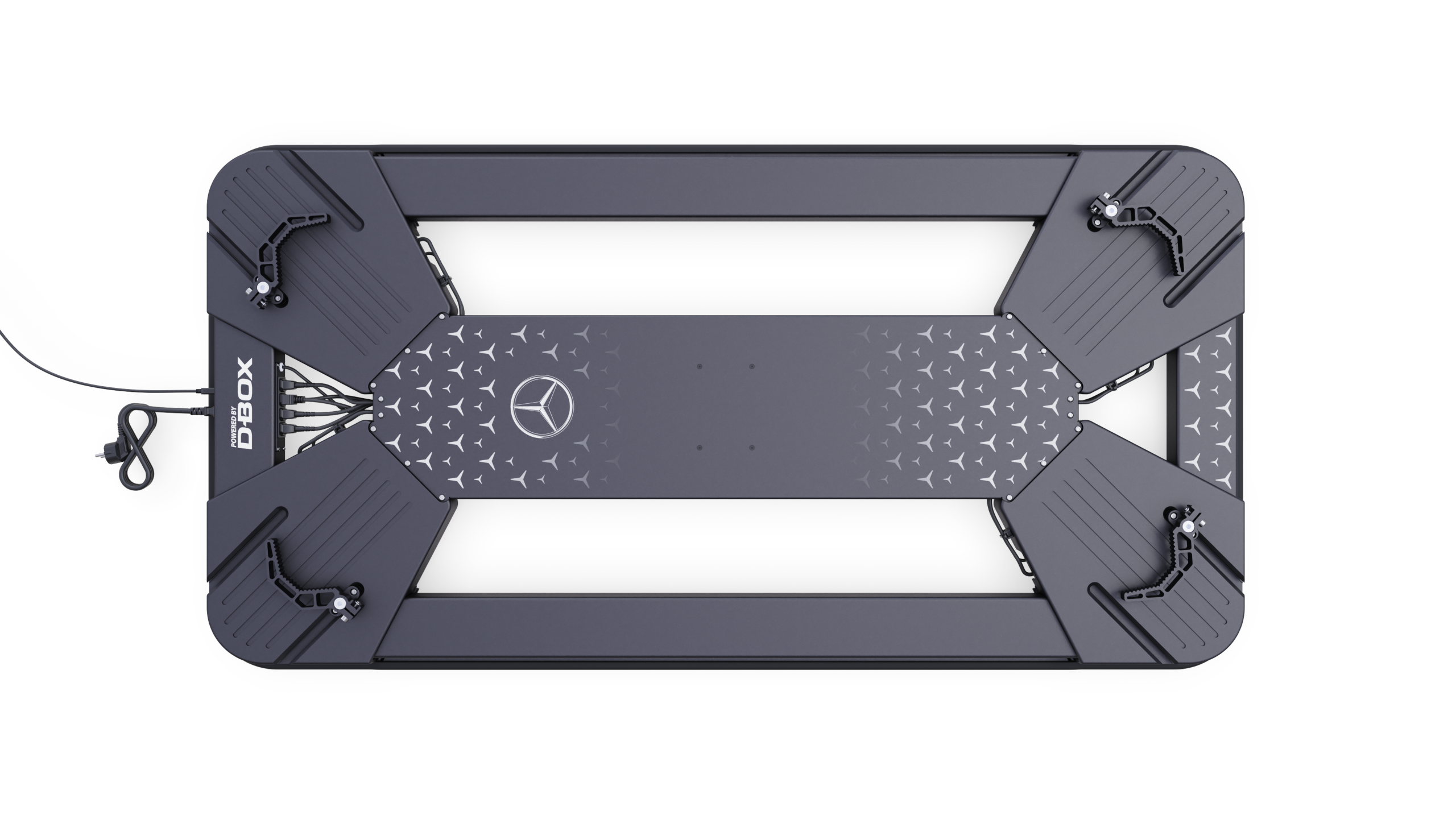

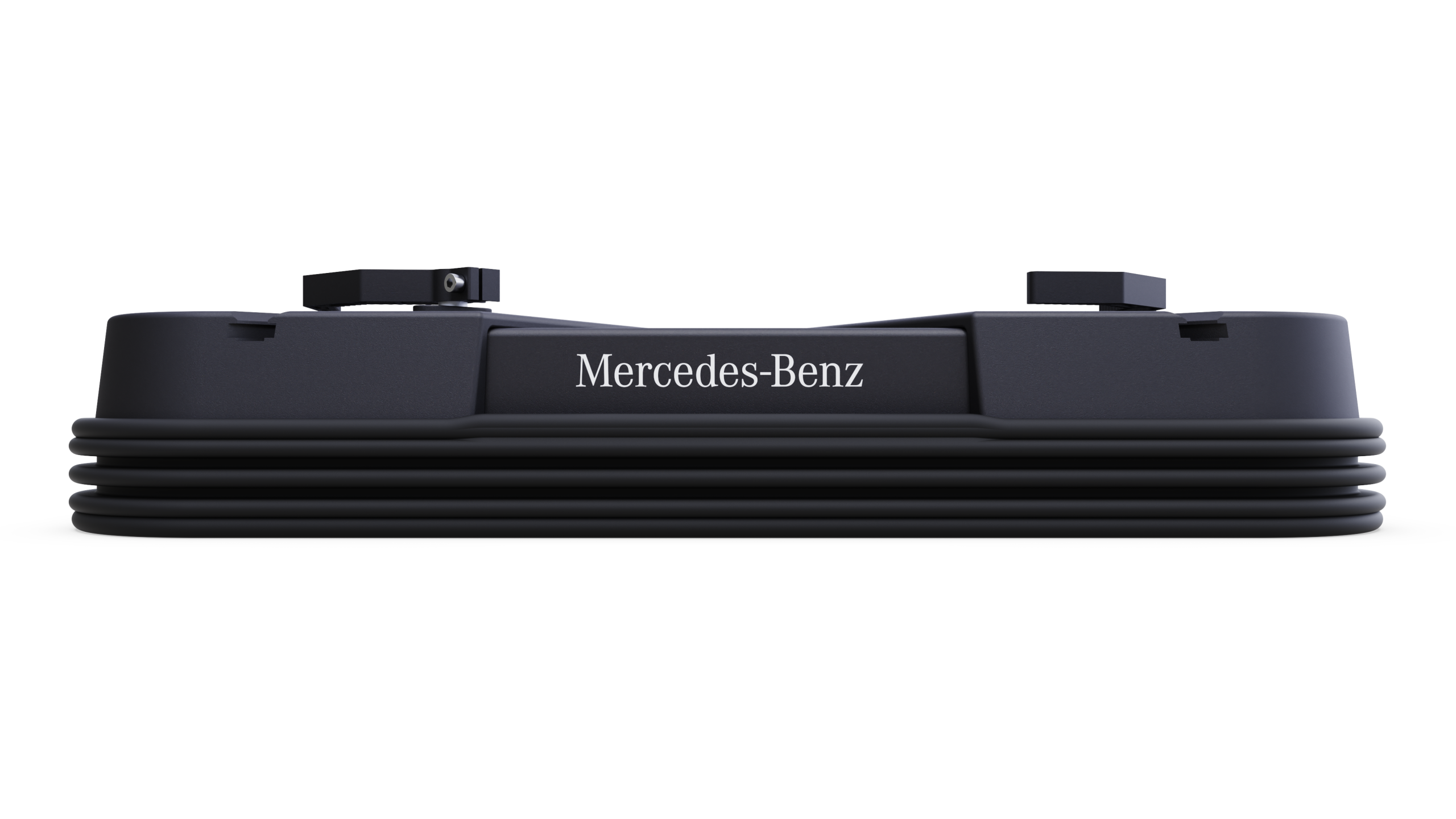

D-Box Mercedes/AMG Motion Platform
£8,200.00
Always wanted to reach the next level of your simracing journey? Look no further than D-BOX’s all new G5 haptic technology. The combination of both motion and vibrations in a single extremely high-end package is truly the ultimate add-on for any serious simracer, allowing them to unleash their true potential, through cues so precise, it’ll feel like the real thing!
Step up your game with haptic technology that’s licensed by the FIA, ultra immersive and that comes in a plug & play solution that delivers motion and vibration all in one. The new D-Box Merceedes Motion Platform with Universal fit brackets for almost any type of simulator rig.
Licensed by the FIA, D-BOX’s new generation of haptic products are ultrarealistic, incredibly precise and endlessly reliable. They combine high-fidelity
motion and vibrations in a compact and easier to set up package! You can order yours from us here at AXSIM today!

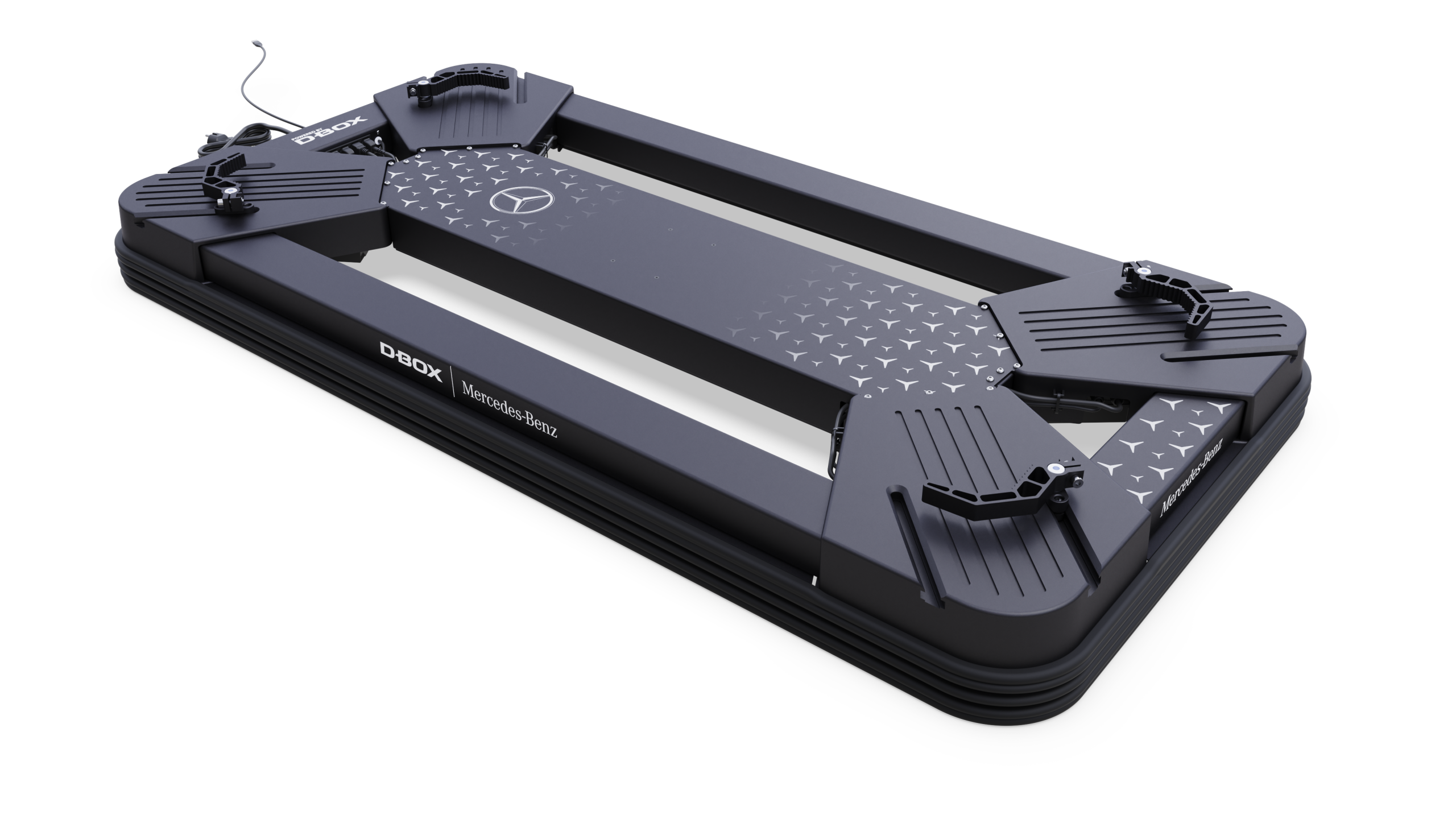

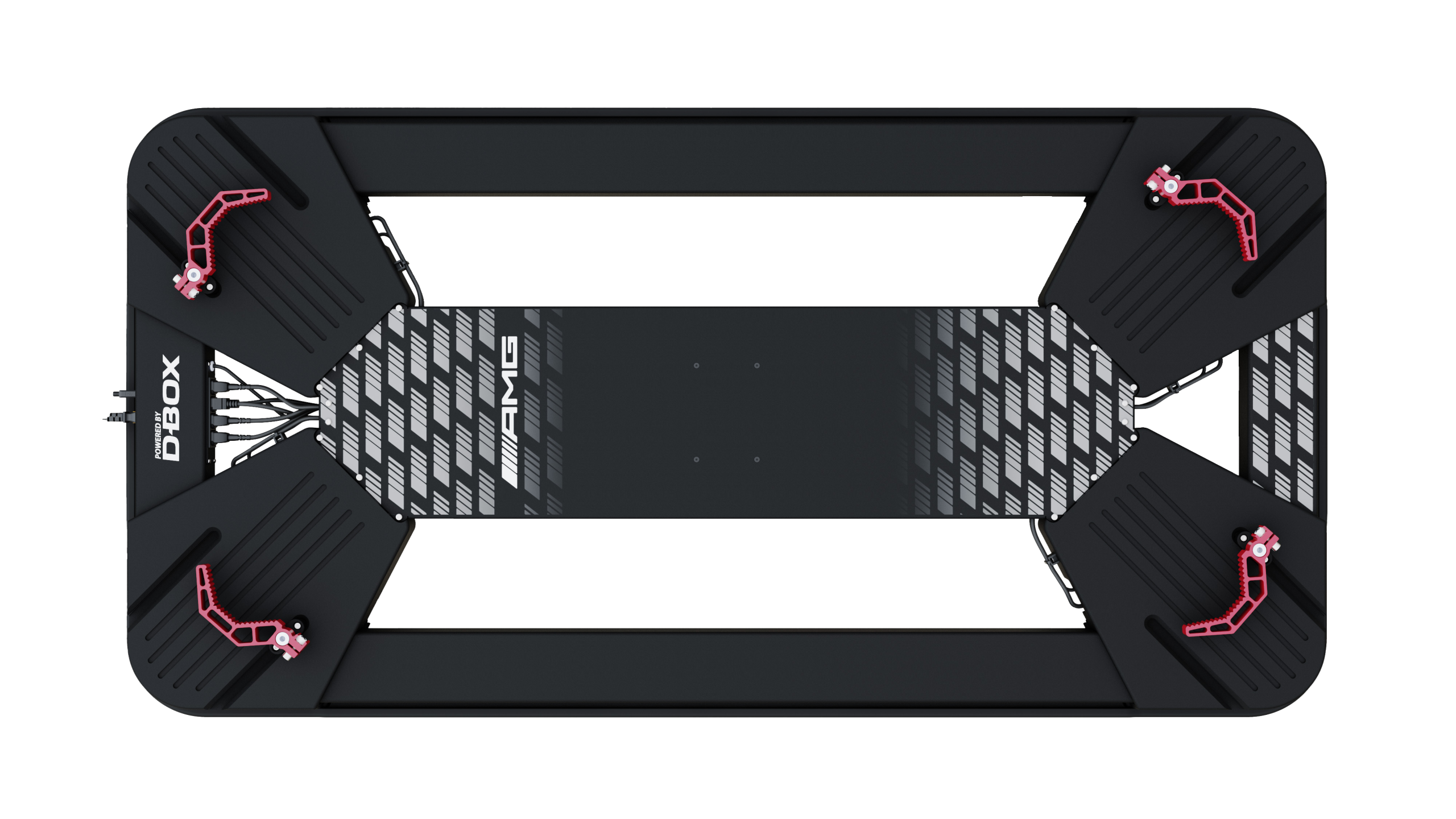

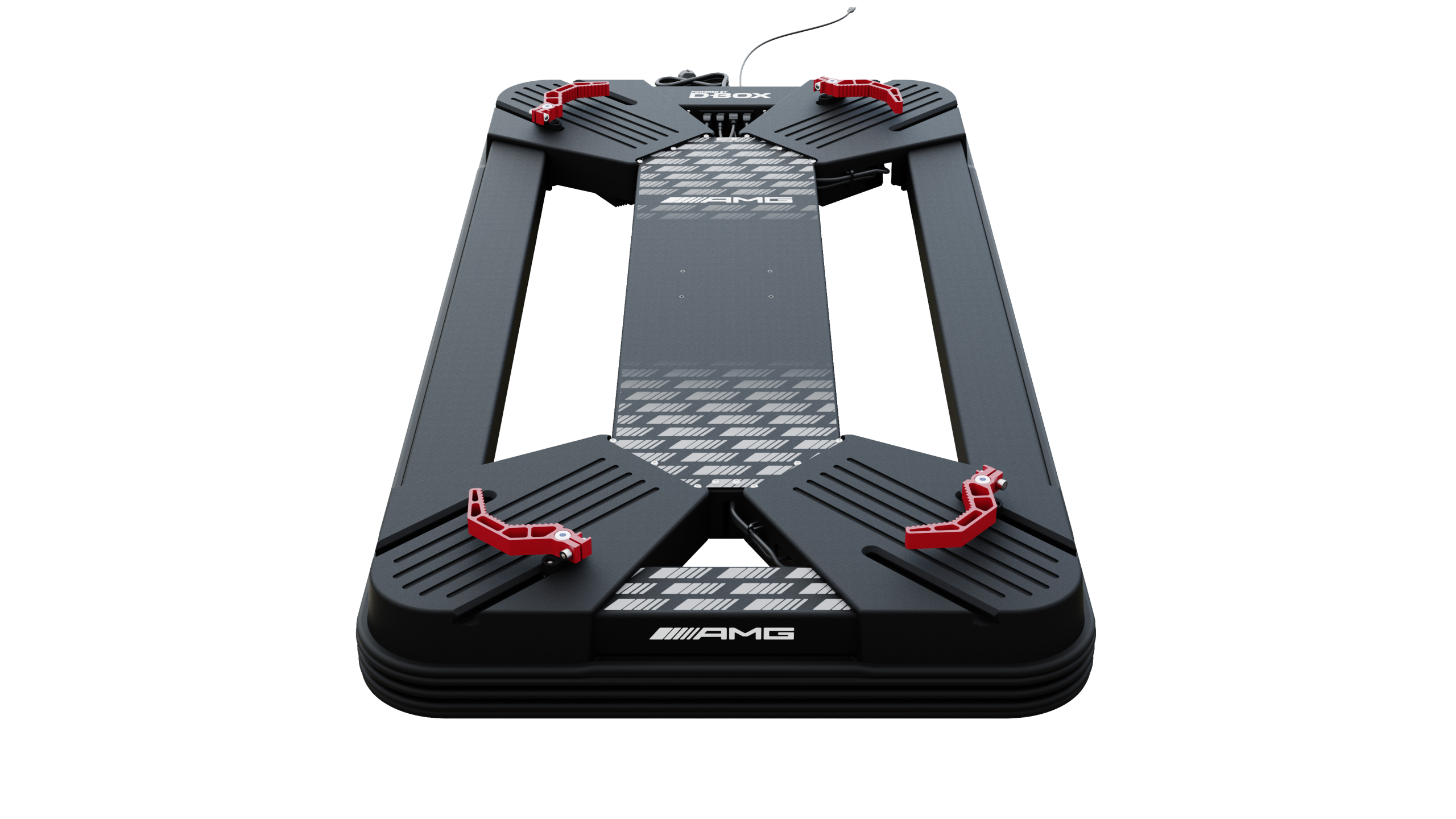

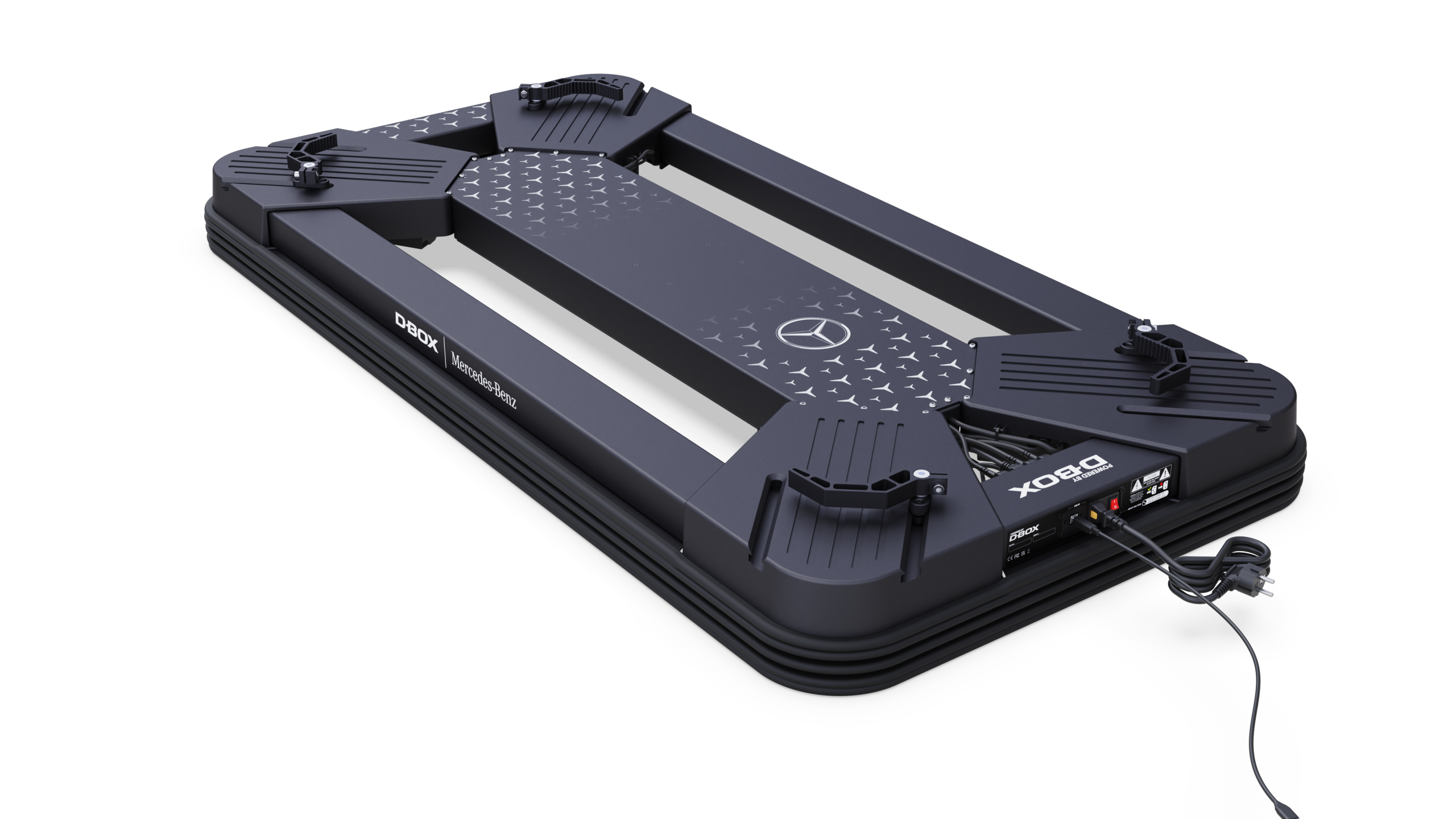

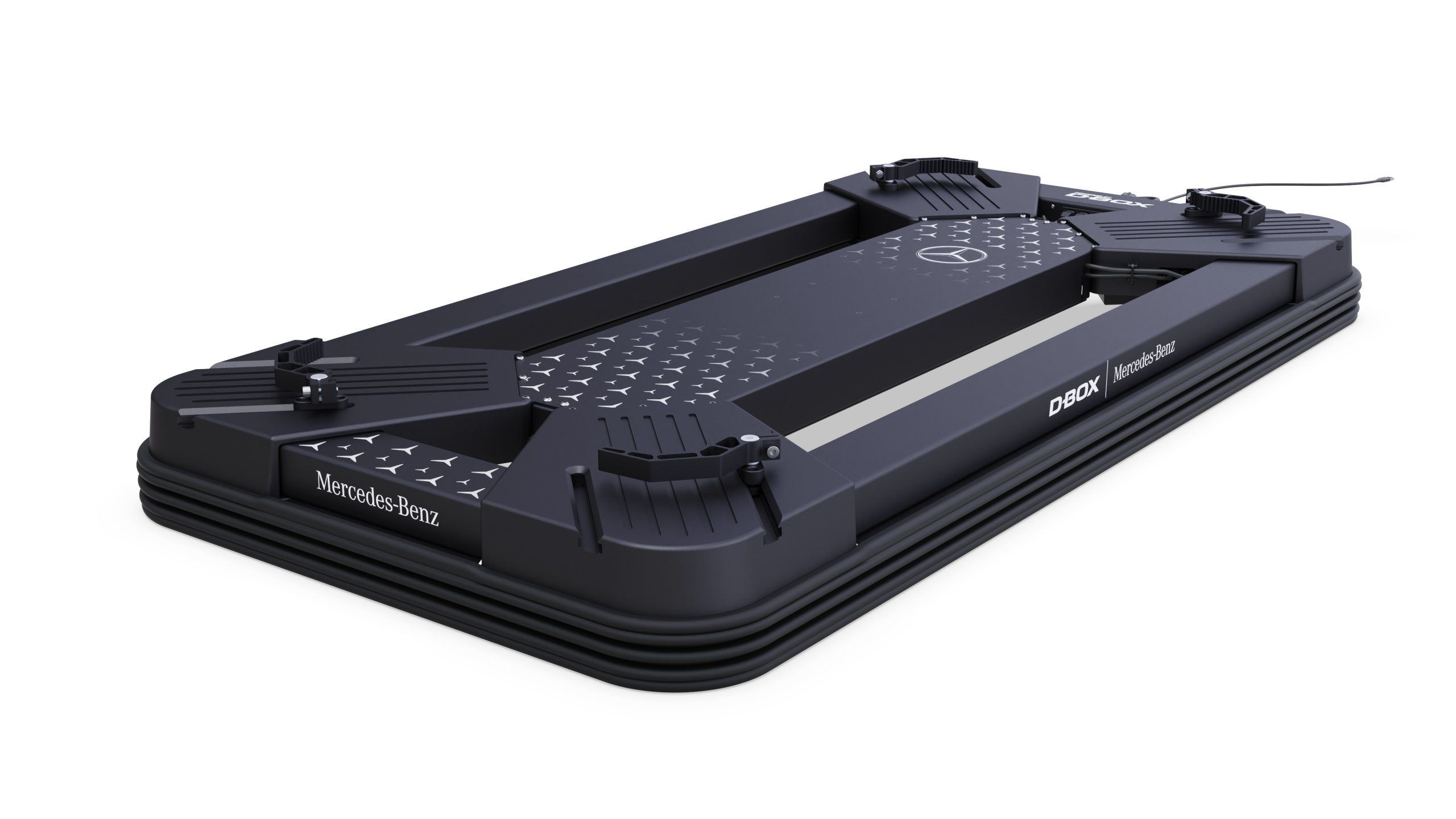

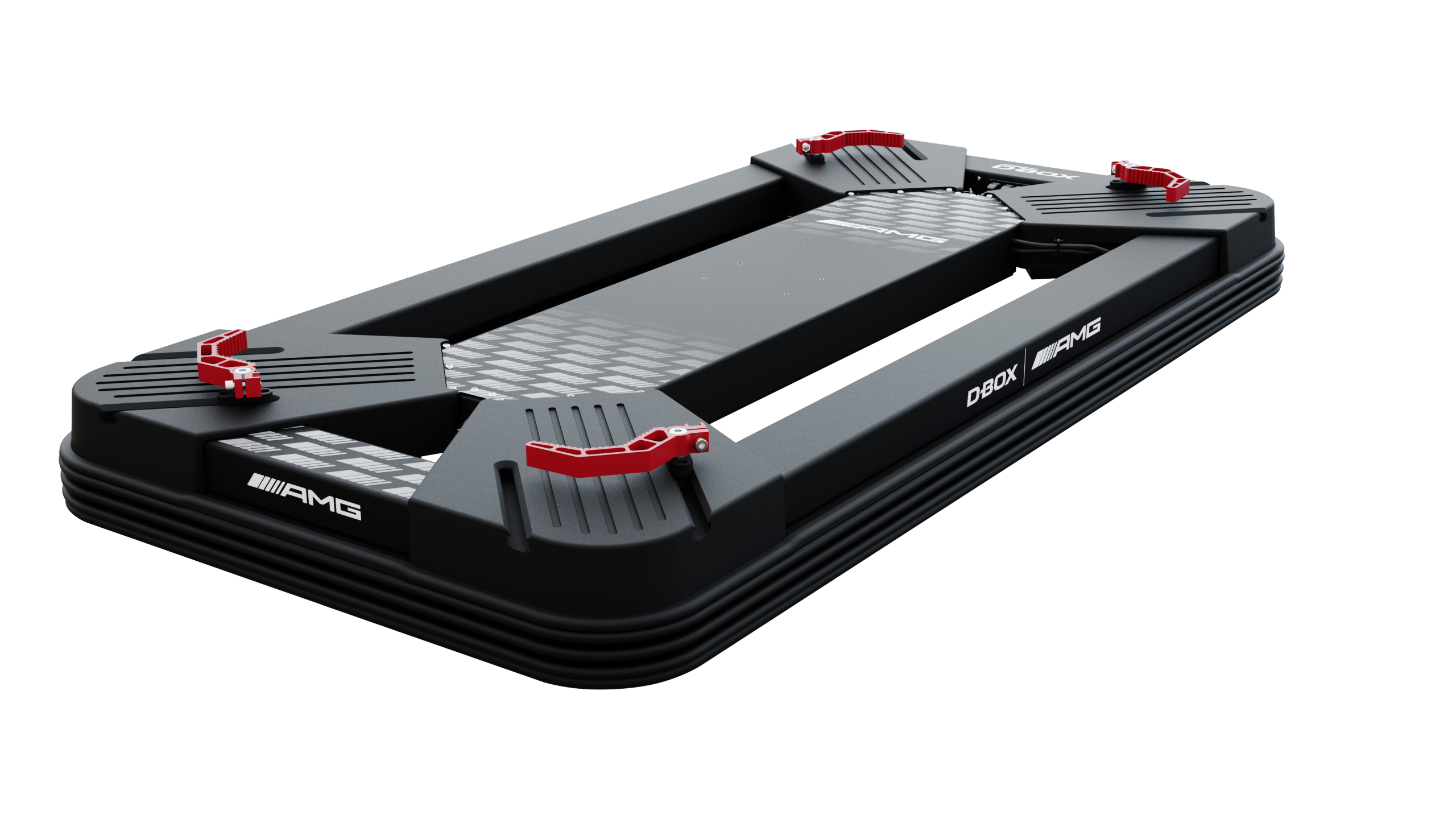

D-BOX and Mercedes-AMG have partnered to bring their vision for the future of entertainment to life through haptic technology, starting with the world’s first modular motion platform.Fitting seamlessly under any simulator you already own, this innovative product from D-BOX & Mercedes-AMG is the perfect way to bring your entertainment from static to haptic!
End User Benefits
- Access to a vast catalogue of content and games, with haptic feedback created in collaboration with gaming studios for ultimate realism
- The ALL NEW ability to experience ANY PC game with haptic feedback thanksto our new Adaptive Gaming Mode.
- Little to no maintenance required
- Complete haptic package of BOTH vibrations and motion feedback all from the G5 system. No Butt kickers or other devices required.
- Granular, subtle feedback perfected by working with professional drivers and the FIA that translates into precise cues such as traction loss, to create an extremely realistic and immersive haptic experience
- Feedback easily tailored to your exact likings In our Game Center, where you can toggle features and create different user profiles
- Easy setup process from hardware to software and simple cable management
Additional information
| Brand | Mercedes, AMG |
|---|---|
| Dimensions | 881mm x 1731mm x 140mm [width, length, height (OFF position)] |
| Warranty | Backed by D-Box Warranty |
| Shipping | Ships directly from D-Box facility |
| Weight | 163 lbs (74 kg) |
| Maximum Lifting Capacity | 700 lbs (317.5 kg) |
Featuring universal mounting brackets, the D-BOX Mercedes-AMG motion platform is designed to integrate seamlessly with most simulator rigs.

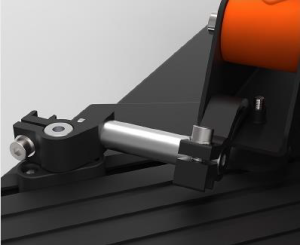

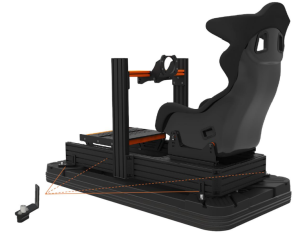

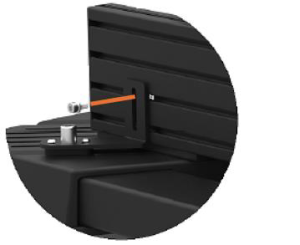

Example Aluminium Extrusion simulator rig Installation
Secure all four (4) brackets to the aluminum side profiles using screws and T-nuts (not
included). Ensure that everything is tight and stable:

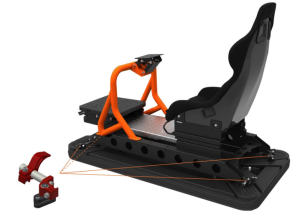

Example Round & Square Tubing Installation
Secure all four (4) brackets to the rig. Ensure that everything is tight and stable:
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Power Requirements (Max.) | 120V, 50/60 Hz, 8A 230V, 50/60 Hz, 4.2A |
| PC Connection | USB 2.0 or higher |
| Operating System | Windows 10 64-bit (version 1809) or later |
| Haptic System | 4 × G5 haptic actuators (3DoF) mounted horizontally |
| Maximum Stroke | 1.5 inch / 38.1 mm |
| Maximum Lifting Capacity | 700 lbs (317.5 kg) |
| Max Angular Displacement | Roll: ±4.5° Pitch: ±1.5° |
| Maximum Velocity | 100 mm/s |
| Maximum Acceleration | ±1 g-force |
| Frequency Range | 0–100 Hz |
| Operating Temperature Range | 0°C – 40°C (32°F – 104°F) |
| Operating Hygrometry | 10 to 85% (free from condensing) |
| Dimensions | 68.2″ (L) × 34.7″ (W) × 5.5″ (H) 1731 mm (L) × 881 mm (W) × 140 mm (H) |
| Weight | 163 lbs (74 kg) |
